BioTek EL406 Microplate Washer Dispenser

The BioTek EL406 washer and dispenser combination is a versatile and compact instrument providing fast and full plate washing along with reagent dispensing. Allows programmable dispense volumes, flow, and aspiration rates and provides for a wide range of washing capabilities. Supports wash, prime, dispense, and aspirate programs. Can be used to wash all microplate-based assays, including ELISA, fluorescence, chemiluminescence, RNA, DNA probes, and cellular assays. Reagent dispensing can be carried out by a peristaltic pump and consumable cassette (1µL, 5µL, or 10µL) or with a dual syringe pump dispenser with an 8-, 16-, or 32-channel manifold, depending on configuration.

Features:

• "P" Version includes 1 peristaltic pump dispenser
• "S" Version includes 2 syringe pump module dispenser
• "U" Version includes the ultrasonic advantage priming bath for manifold self maintenance procedures
• "B" Version allows for the addition of a valve module unit for 4 buffer switching
• "1" Version includes a Dual-Action 96-tube manifold for 96- and 384-well microplate washing
• "LB" Version allows for the addition of 1536-well capable aspiration/dispense manifolds
• 100-240V, 50/60Hz, 8A.

What is Included:

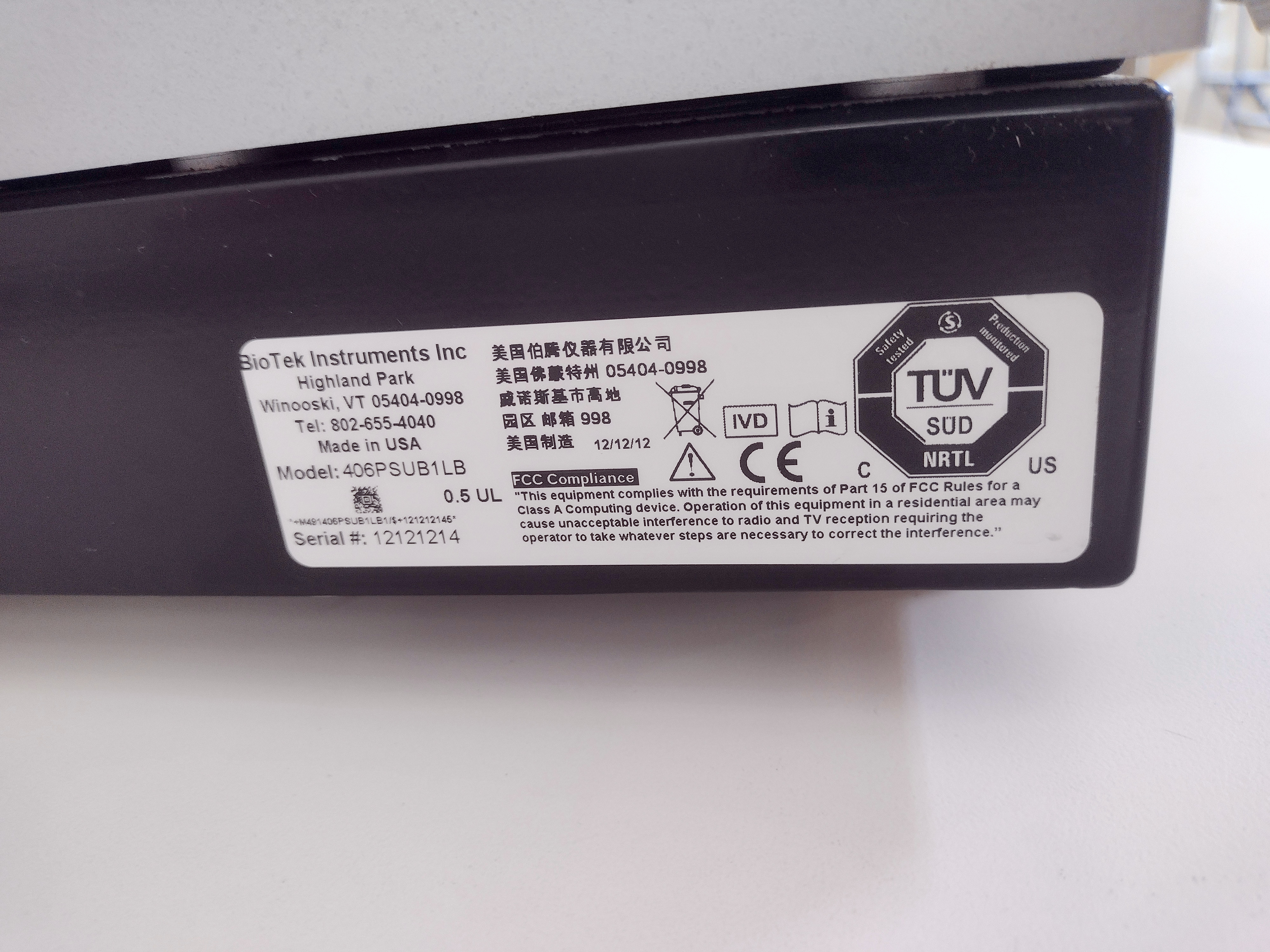

• EL406 406PSUB1LB microplate washer/dispenser
• 1 peristaltic pump dispenser with 8-channel 10µL dispensing cassette
• 1 dual syringe pump module with autoclavable dual-channel (8 Tube - 7º) dispensing manifold
• Standard Thomas/Gast/Welch piston vacuum pump (Upgrade to Vacuubrand pump available)
• Two 4-Liter waste bottles with vacuum tubing (Upgrade to 20-Liter primary waste bottle available)
• One 4-Liter supply bottle with dispense tubing (Upgrade to valve module with full set of 4 supply bottles available)

*Biostack plate stacking systems are also available

Fully tested and verified working! Comes with a 90-day warranty.

Local delivery and installation available.

Based in Palo Alto California, SER has been supplying high-quality lab equipment over 30+ years to our local biotech community and beyond.
